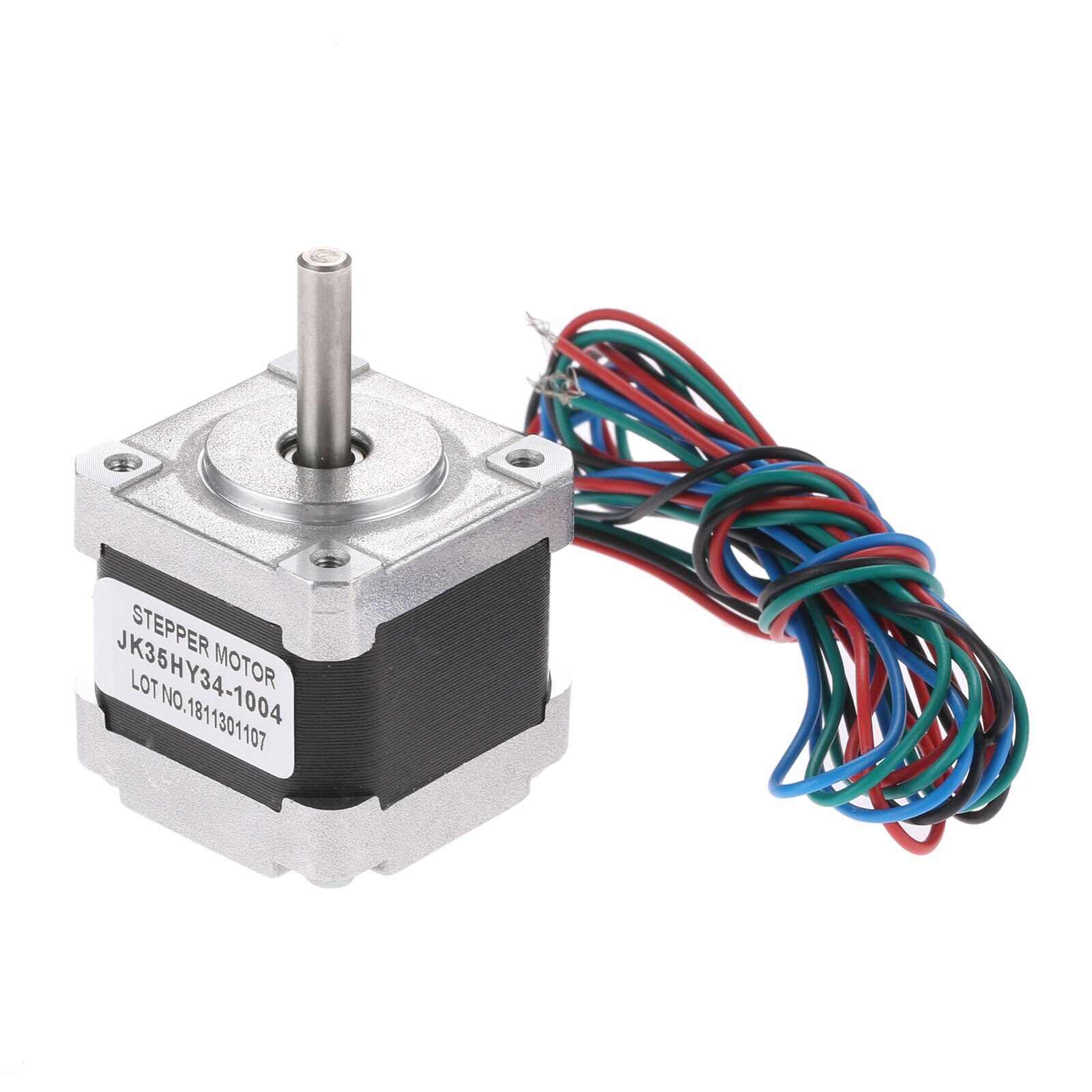

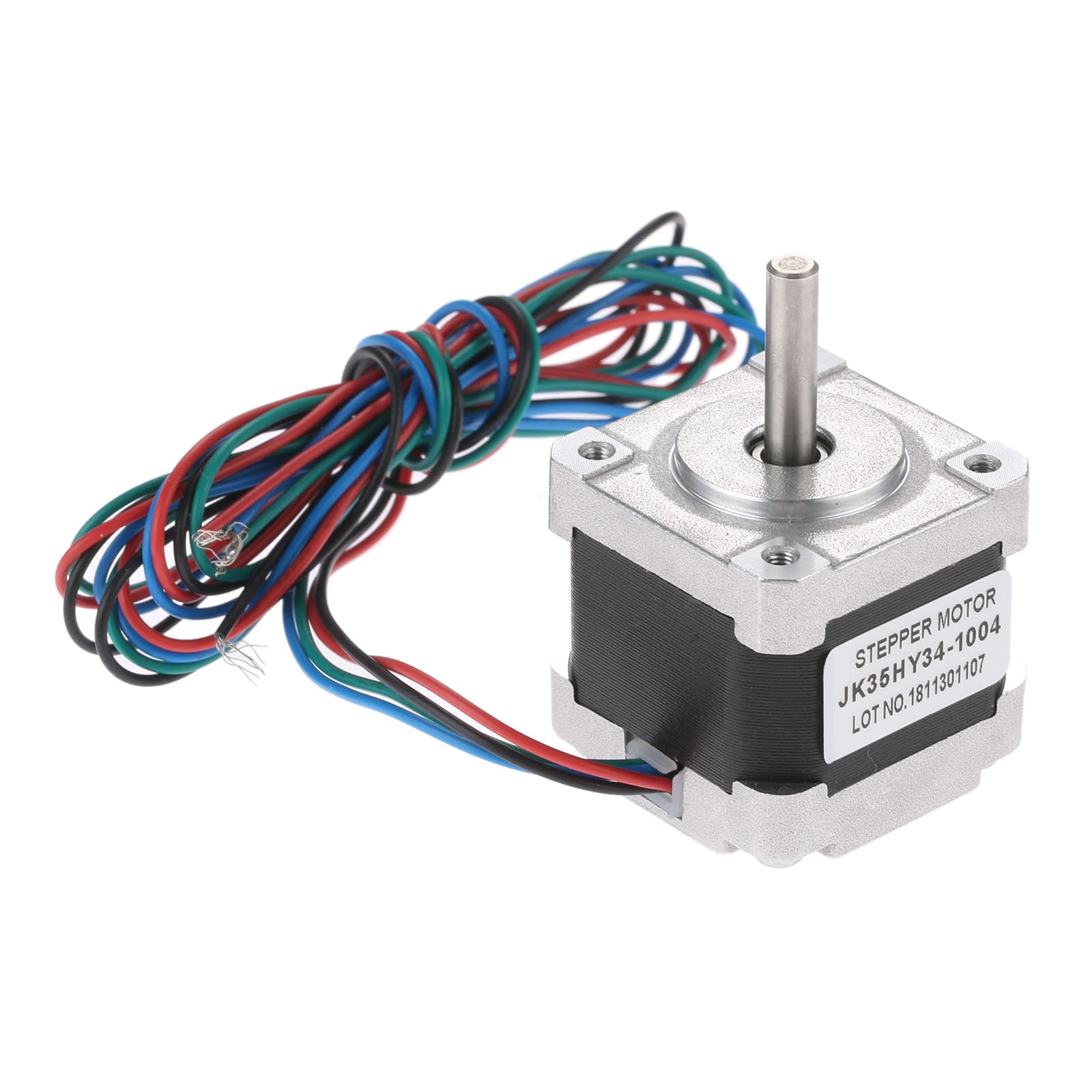

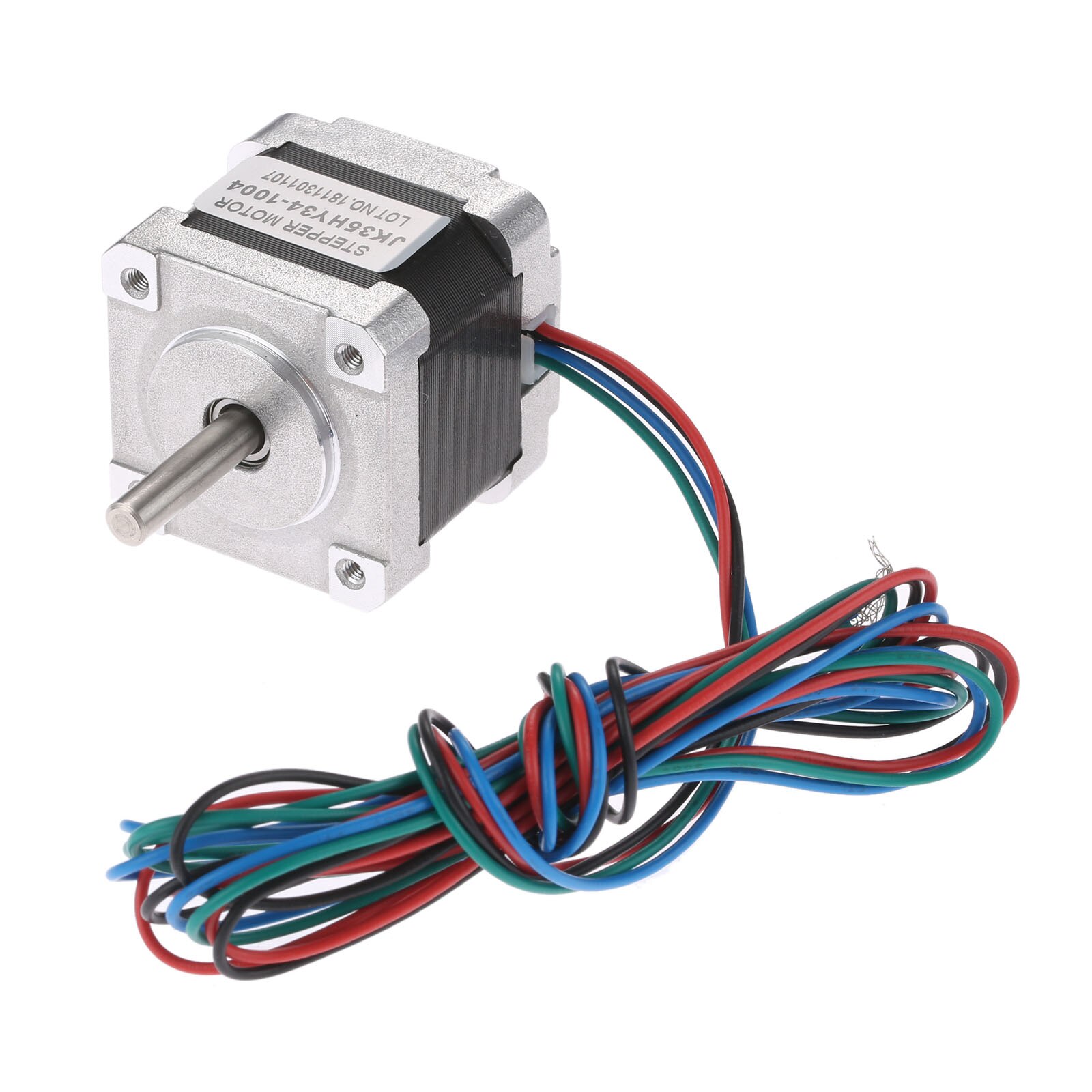

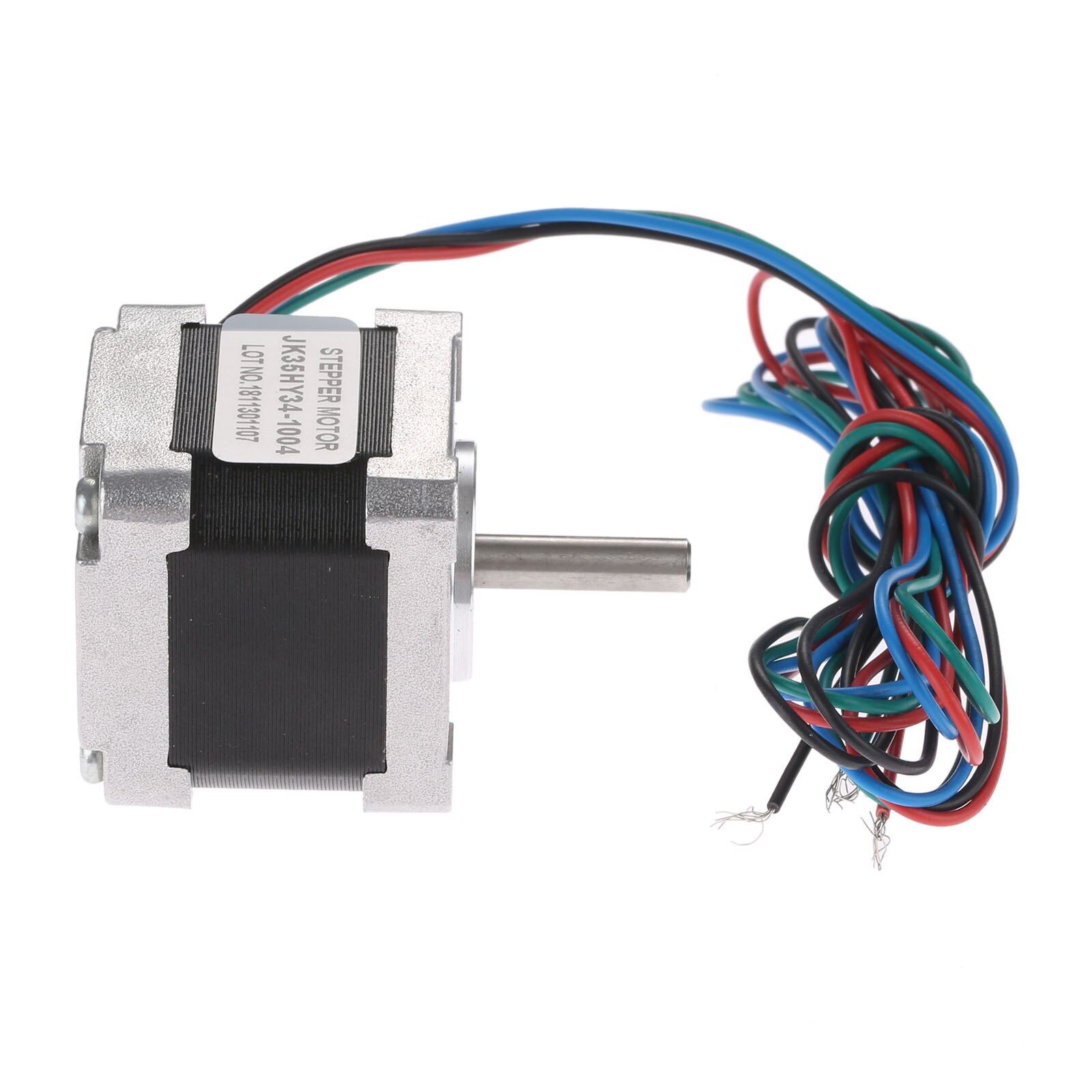

NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A
NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A
NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A
NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A
NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A
NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A

NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A

SKU: AC-1X0Q5MG7W10

Price

A$53.79

Free shipping

MSRP:A$73.59
27%
discount

Advantages

  • Free shipping
  • Free returns*
  • Low prices

NEMA14 35 Hybrid Bipolar Stepper Motor 1.8 Degree 2 Phase 34mm Nema 14 Motor De Passo 4-lead Bipolar Stepper with Cable 1.0A

Specifications:

  • Ambient Temperature: -20℃~+50℃.
  • Cable length: 300mm/12in.
  • Certification: CCC
  • Certification: ce
  • Certification: ISO
  • Certification: ROHS
  • Certification: UL
  • Current / Phase: 1.0A;
  • Detent Torque: 100g.cm/0.98N.cm/1.4oz.in;
  • Dielectric Strength: 500VAC for 1minute.
  • Frame Size: 35mm x 35mm/1.4in x 1.4in.
  • Front Shaft Length: 19mm.
  • Holding Torque: 1400g.cm/13.72N.cm/19.3oz.in;
  • Inductance/phase: 4.3mH±20%;
  • Insulation Resistance: 100 MΩ Min. ,500VDC.
  • Manufacturer Part Number: 35HY34-1004;
  • Max. axial force: 10N
  • Max. radial force: 28N (20mmfrom the flange).
  • Model Number: JK35HY34-1004
  • Motor Length: 34mm/1.3in.
  • Motor Type: Bipolar Stepper;
  • Number of Leads: 4
  • Origin: CN(Origin)
  • Phase: 2
  • Phase Resistance: 2.7ohms;
  • Rotor Inertia: 14g.cm2.
  • Shaft Axial Play: 0.08Max. (450g-load).
  • Shaft Diameter: 5mm
  • Shaft Radial Play: 0.02Max. (450g-load).
  • Step Angle(degrees): 1.8
  • Temperature Rise: 80℃max.
  • Type: Hybrid
