Specifications:

• Voltage/current/active Power Accurate: +0.5%
• Voltage Circuit Power Consumption: 1W
• Under Voltage Protection Value: 85-300V (Default 170V)
• Type: 63A/80A (Optional)
• Storage Temperature: -40~+80

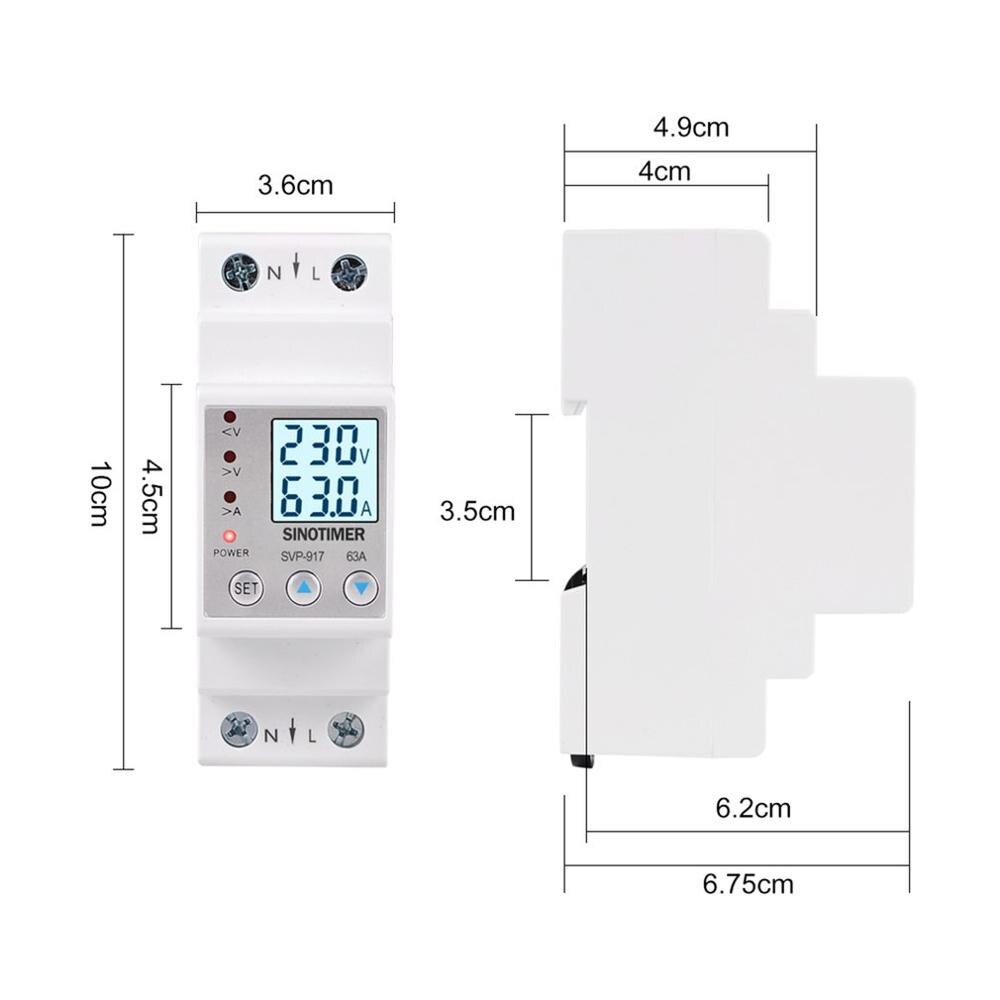

• Size: 100x36x67.5mm/3.94x1.42x2.66in
• Relative Humidity: 85%
• Rated Frequency: 50/60Hz

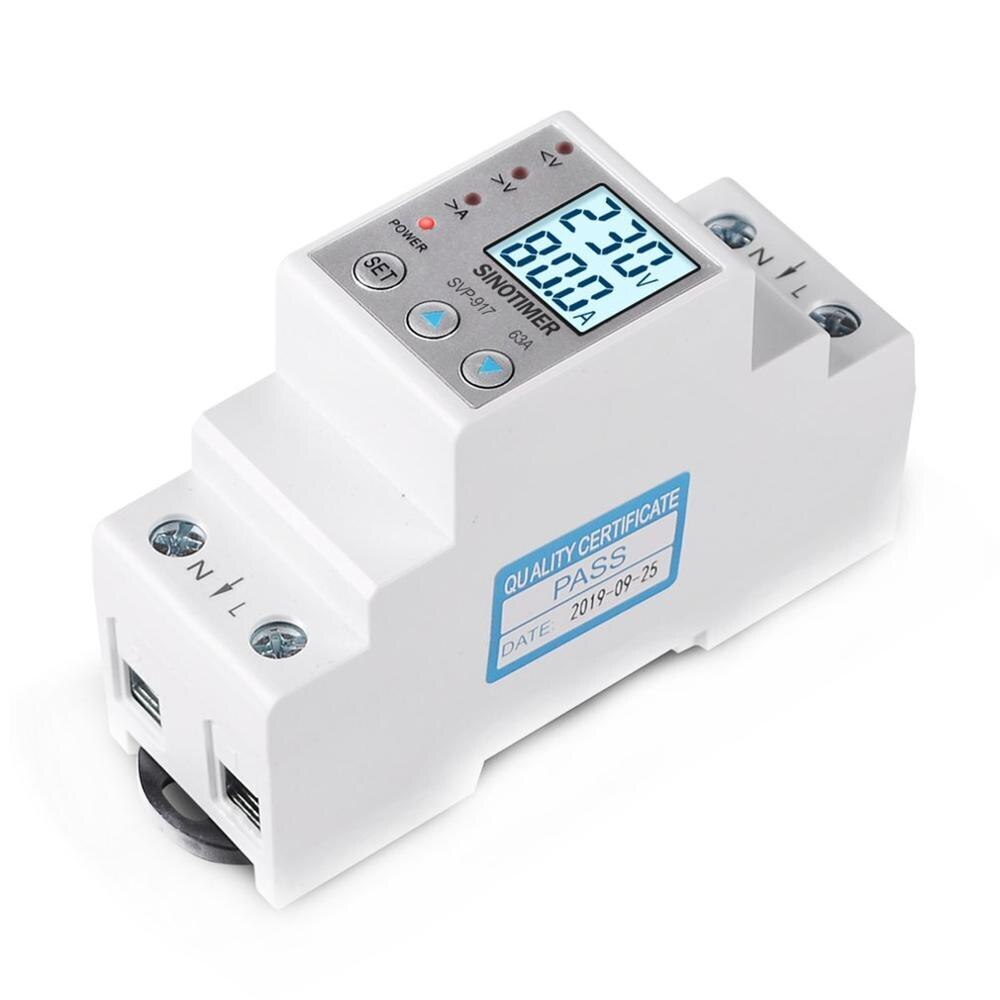

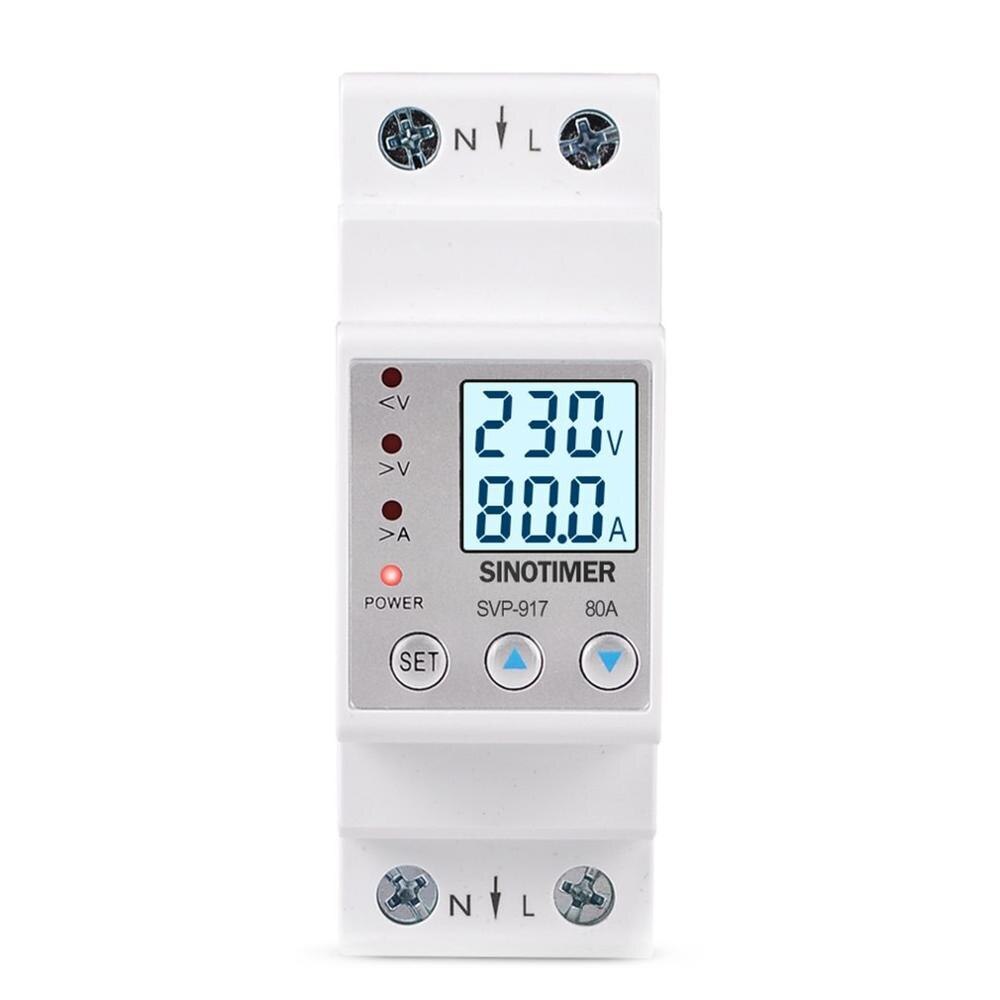

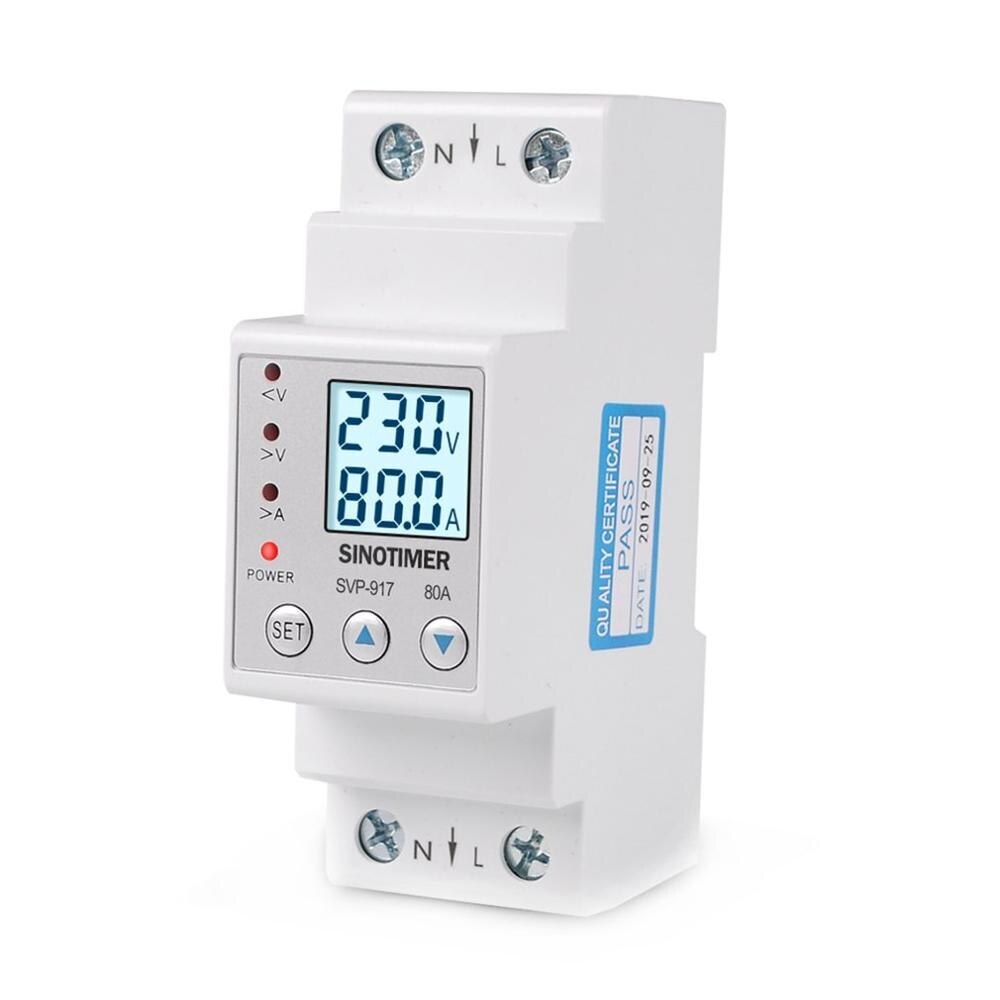

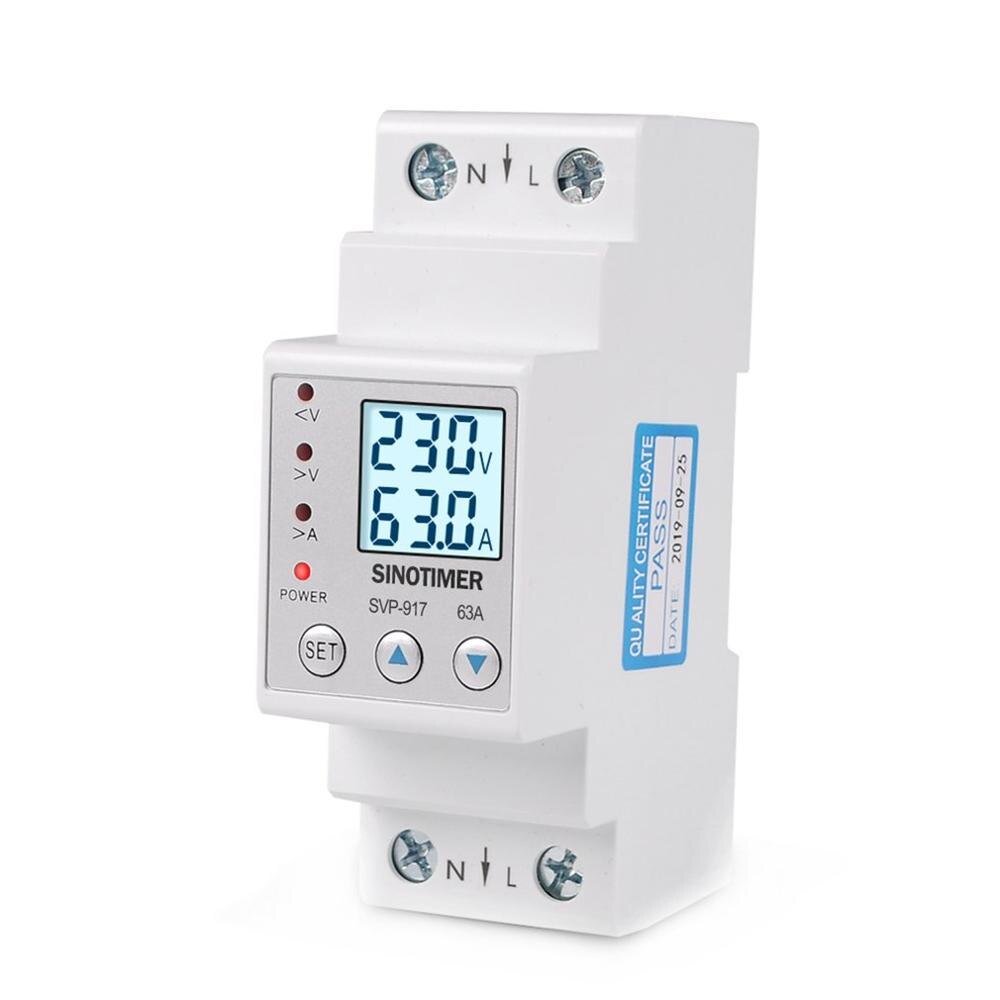

• Product Name: Over Under Voltage Protective Device
• Overvoltage Protection Value: 85-300V (Default 270V)
• Origin: CN(Origin)
• Operating Temperature: -25~+70
• Model Number: SVP-917
• Mechanical Life: 100000 Cycles
• Material: Metal&Plastic
• Input Working Voltage: 85~300V
• Electromagnetic Environment: E2
• Delay in Switch on After Power Off: 2-255V (Default 2s)
• Current Circuit Power Consumption: <1VA
• Country/Region of Manufacture: CHINA
• Color: White
• Brand Name: SINOTIMER
• Altitude: 2500m
• Active Energy Display Range: 0~9999.9kWh
• Active Energy Accurate: +1% (IEC62053-21)
