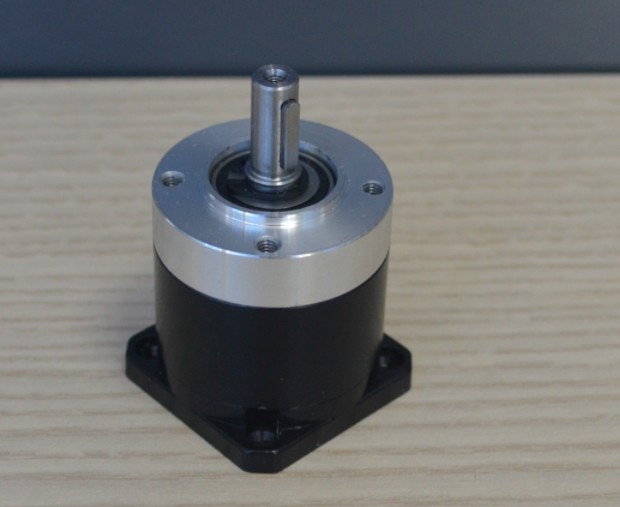

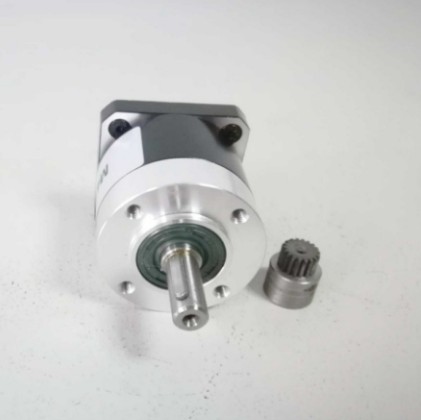

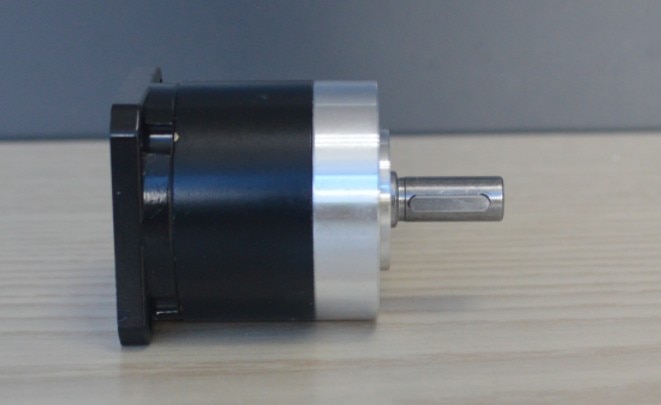

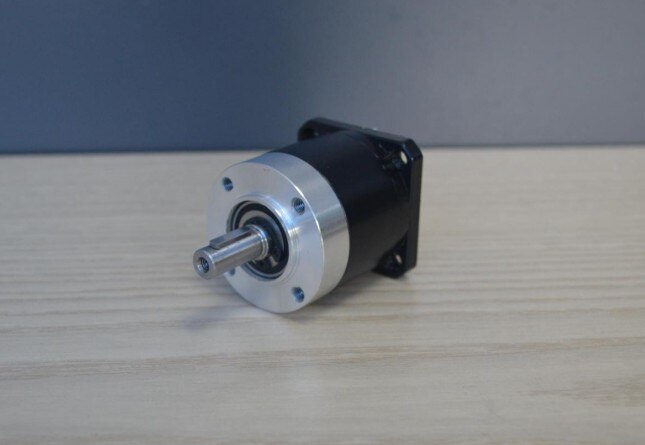

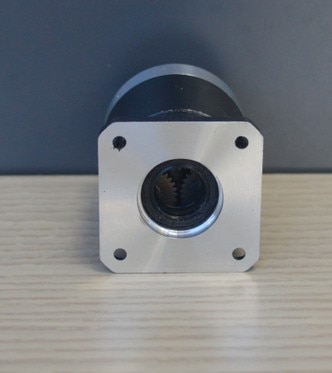

Top NEMA 17 Planetary Gearbox Nema17 Ratio 10:1 Rated Torque 3.5N.m Nema17 Stepper Motor Gearbox
Specifications:
- Suitable for: motor shaft diameter 5mm
- Output Torque: 4N.m-15N.m
- Output Speed: Changes with the speed ratio
- Maximum torque: 8-18N.m
- Life time: Nomally 20000h
- Input Speed: Rated input speed 3000rpm, maximum input speed 8000rpm
- Backlash: 15arcmin or less
- Used for: geared stepper motor or brushless dc motor
- Rated Power: depends on motor
- Protect Class: IP 65
- Noise: no more than 45dB
- Model Number: PLANETARY GAARBOX nema17-xg10
- Gearing Arrangement: Planetary
- Gearbox Length: 42mm
- Gear ratio: 10:1, also with other gear ratio for slection. contact us!
- Flange size: nema 17, 42mm
- Ambient Temperature: -10C~+90C
